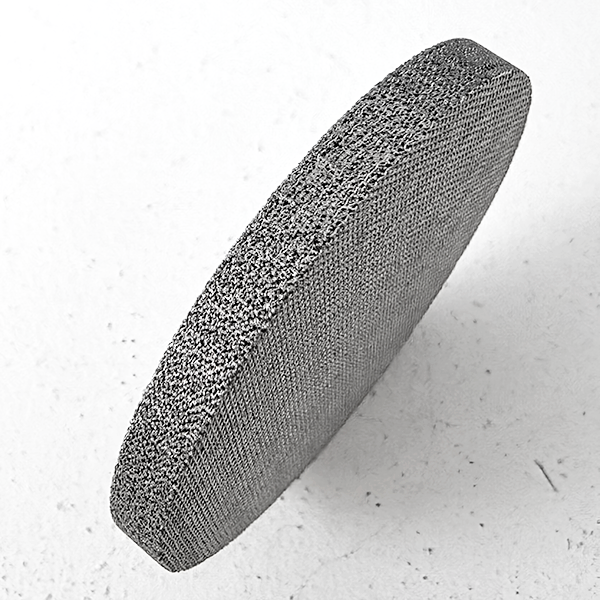

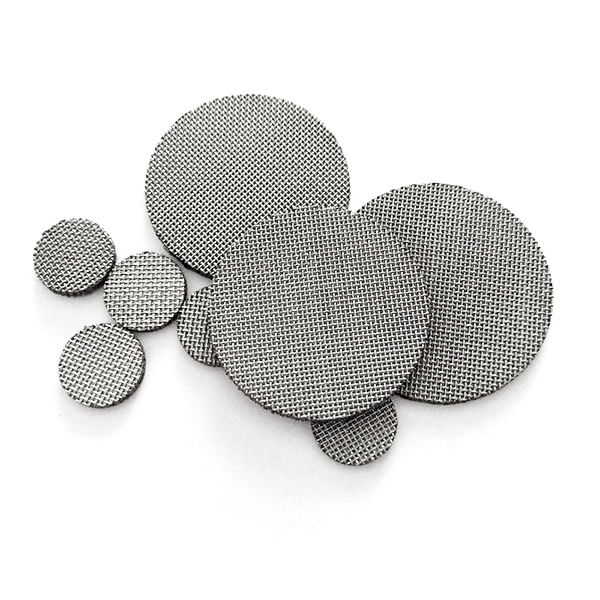

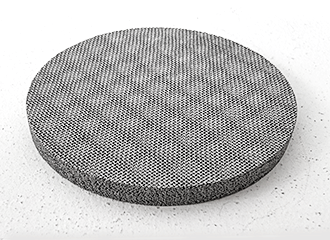

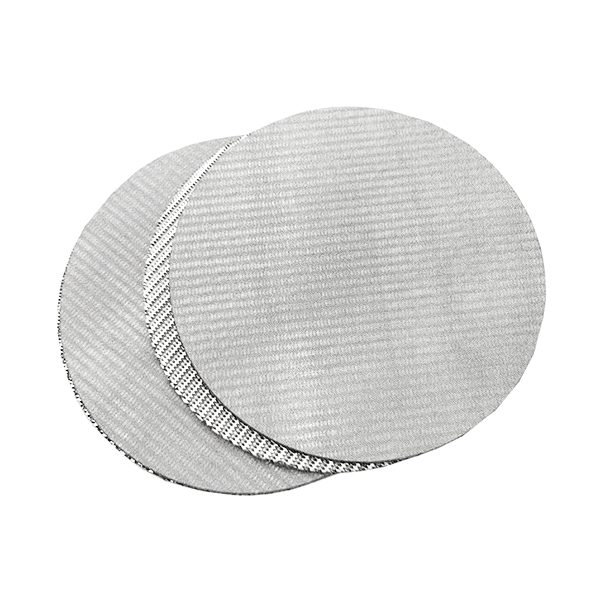

Stainless Steel Sintered Mesh Filter Disc

Huahang stainless steel sintered mesh filter discs are manufactured from multiple layers of precision-woven stainless steel wire mesh that are laminated in a specific sequence and permanently bonded through a high-temperature vacuum sintering process. During sintering, each contact point between the wire meshes is metallurgically fused into a single, rigid structure, creating a uniform porous material with excellent mechanical strength and consistent filtration performance. The sintered sheet is then precision stamped or laser cut into round filter discs to meet a wide range of industrial filtration requirements.

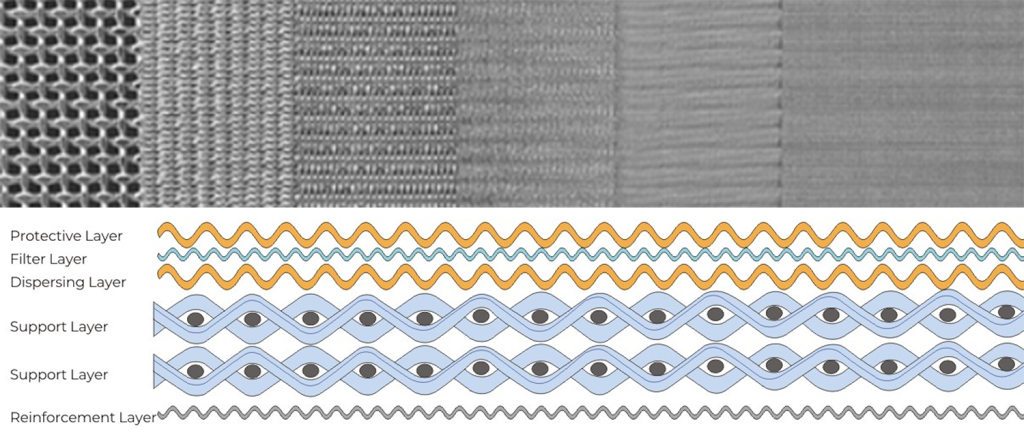

Compared with ordinary woven wire mesh discs, a sintered mesh filter disc offers a much more stable pore structure. The carefully designed multilayer construction forms interconnected gradient pores that allow fluids or gases to pass through smoothly while capturing particles throughout the entire depth of the material rather than only on the surface. This depth filtration mechanism provides higher dirt-holding capacity, reduces the risk of premature clogging, and helps maintain a more stable pressure drop during long-term operation.

Because all mesh layers are permanently bonded together, the filter disc will not suffer from mesh shifting, deformation, or changes in filtration accuracy that can occur with conventional single-layer wire mesh. The rigid one-piece structure also provides excellent resistance to pressure, vibration, and repeated cleaning, making it suitable for demanding operating environments.

Manufactured from high-quality stainless steel materials such as 304, 316, and 316L, Huahang sintered mesh filter discs combine excellent corrosion resistance with outstanding temperature and pressure tolerance. They are widely used for liquid filtration, gas filtration, ventilation, flow distribution, particle retention, and protective filtration across industries including chemical processing, petrochemical, pharmaceutical, food and beverage, hydraulic systems, semiconductor manufacturing, power generation, and new energy applications.

Huahang Sintered Mesh Specifications

Parameter

Material

Filtration Rating

Diameter

Thickness

Operating Temperature

Range

SS304, SS316L, Custom Alloy

1 – 300 μm

5mm – 200mm

1mm – 5 mm

-200°C – 600°C

Structural Advantages of Sintered Mesh Discs

Every Huahang sintered filter disc is produced under strict quality control to ensure consistent pore size distribution and reliable filtration precision. The edges are carefully finished to eliminate burrs and loose wires, allowing the discs to be installed directly into filter housings, valves, pneumatic components, sensors, and other compact filtration assemblies without additional machining.

♦ Excellent Structural Strength: Huahang sintered mesh filter discs are manufactured directly from a single piece of sintered wire mesh without welding, edge wrapping, or additional support frames. The one-piece construction maintains the original strength of the sintered material while providing smooth, burr-free edges for easy installation. Unlike conventional edge-welded filter discs, there is no risk of weld contamination, loose wires, or leakage around the edges.

♦ Accurate and Consistent Filtration: The multilayer stainless steel mesh is vacuum sintered into a stable porous structure with evenly distributed gradient pores. This design provides reliable filtration from 1 to 300 microns, ensuring uniform particle retention across the entire filter surface. The rigid structure maintains filtration accuracy throughout its service life without pore deformation or localized bypass.

♦ Reliable in Harsh Operating Conditions: Available in 304, 316, and 316L stainless steel, Huahang filter discs offer excellent resistance to corrosion, high temperatures, and pressure. They perform reliably in operating temperatures ranging from -200°C to 600°C, making them suitable for aggressive chemicals, hot gases, steam, hydraulic fluids, and other demanding process media.

♦ Long Service Life and Easy Maintenance: The rigid sintered metal construction provides excellent compressive strength and a high dirt-holding capacity. The filter discs can be cleaned by backwashing, ultrasonic cleaning, or other common regeneration methods, allowing repeated reuse without significant loss of filtration performance. Compared with disposable filter media, they offer a much longer service life and help reduce maintenance frequency and operating costs.

♦ Flexible Custom Manufacturing: Huahang manufactures sintered mesh filter discs in a wide range of diameters, thicknesses, filtration ratings, and materials. Custom dimensions can be produced without expensive tooling, making both prototype development and small-volume production fast and cost-effective. OEM and ODM services are available to meet the requirements of different filtration systems and equipment.

Industrial Applications

Huahang stainless steel sintered mesh filter discs are widely used in filtration, venting, flow control, and particle retention applications across many industries.

•Pharmaceutical Industry– Liquid filtration, sterile venting, laboratory equipment, sampling systems, and pharmaceutical processing equipment.

•Food & Beverage– Beverage filtration, coffee and brewing equipment, powder conveying systems, and food processing machinery.

•Hydraulic & Pneumatic Systems– Hydraulic valve protection, pneumatic silencers, compressed air filtration, and injector protection.

•Chemical & Petrochemical– Corrosive chemical filtration, gas purification, flame arresting devices, process equipment, and precision fluid filtration.

•Electronics & Semiconductor– Process gas filtration, clean air systems, dust protection, microfluidic devices, and semiconductor manufacturing equipment.

•Water Treatment & Environmental Protection– Water analysis instruments, pre-filtration systems, sampling equipment, precision water filtration, and environmental monitoring devices.

With more than 20 years of filtration manufacturing experience, Huahang also provides custom-made sintered mesh filter discs in various diameters, thicknesses, filtration ratings, materials, and edge configurations to meet specific equipment designs and operating conditions. Whether for OEM production or replacement applications, our sintered filter discs deliver reliable performance, long service life, and consistent filtration efficiency in demanding industrial environments.

Ready to Discuss Your Filtration Needs?

Contact Huahang Filter to receive professional technical support and customized filtration solutions.
