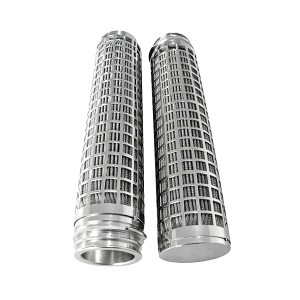

Reinforced Structure Pleated Metal Mesh Filter
The strengthen frame metal pleated mesh polymer filter element is formed by ‘a perforated strengthened frame + stainless steel woven mesh + sintered fiber felt + core support frame’. It belongs to a heavy duty melt filter cartridge. Some of the common metal pleated mesh filters are easily deformed, collapsed, cracked, and bulged. By adding an outer punched reinforced frame, the filter element is essentially upgraded from an ‘ordinary folded structure’ to a ‘high-strength compression-resistant depth filter structure’.
Compared with a normal metal mesh pleated polymer filter, the heavy-duty polymer melt filter cartridge has excellent compressive strength, pulse resistance, impact resistance, and deformation resistance, and is especially suitable for high-pressure polymer systems.
Compared with a stainless steel sintered mesh filter cartridge, the metal pleated mesh filter features a large filtration area, high dirt holding capacity, low pressure drop, and high flow rate, making it especially suitable for polymer melt filtration, hydraulic oil filtration, lubricant purification, chemical processing, steam filtration, and high-temperature liquid filtration applications.
Key Advantages of Metal Mesh Pleated Filter Cartridge
Huahang stainless steel woven mesh filter has a multiple times pleated and whole body welded structure. Making it features excellent filtration performance in high-flow, high-viscosity, and heavy dirt working conditions.
Massive Filtration Area
The large filter area is the greatest advantage of Huahang polymer melt pleated mesh filter cartridge. The filtration area can be 3 times, 5 times, or even greater than that of a sintered mesh filter element.
This means higher flow rates, lower pressure drop, and reduced susceptibility to clogging. It is particularly well-suited for polymer melts, high-viscosity media, and continuous production lines.
High Dirt Holding Capacity
Due to the large filtration area, it can accommodate a greater volume of contaminants, and the pressure differential rises more slowly.
So the metal pleated mesh polymer melt filter from Huahang offers a longer service life and is better suited for heavily contaminated operating environments, such as plastics extrusion, film production, and chemical fiber spinning.
High Flow Rate
The pleated structure of the metal-woven mesh filter element is inherently well-suited for high flow rates and low pressure drop.
Many polymer melt systems feature extremely high flow rates and high viscosity liquids; sintered mesh filters are prone to rapid increases in differential pressure and restricted flow rates. Consequently, the pleated mesh structures of the polymer filter offer distinct advantages.
Saving Installation Space
Due to the stainless steel pleated filter cartridge having a high filtration surface area per unit volume, 1 polymer filter’s filtration performance is equivalent to 2-3 sintered mesh filter cartridges.
So what previously required 10 standard sintered mesh filter elements may now require just 3 to 4 pleated filter elements. Consequently, the filter unit is smaller in size, and the overall system is more compact.

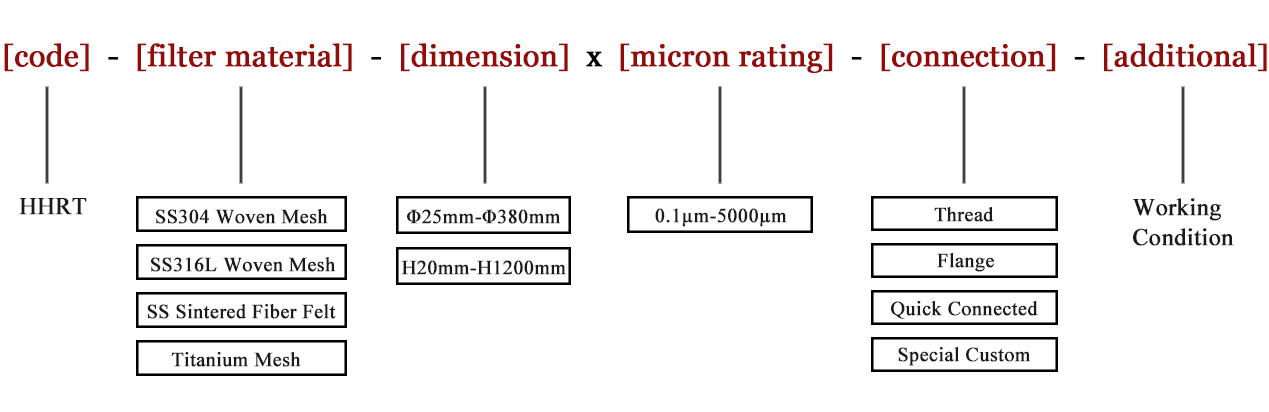

Different Structures of Polymer Melt Pleated Filter Element

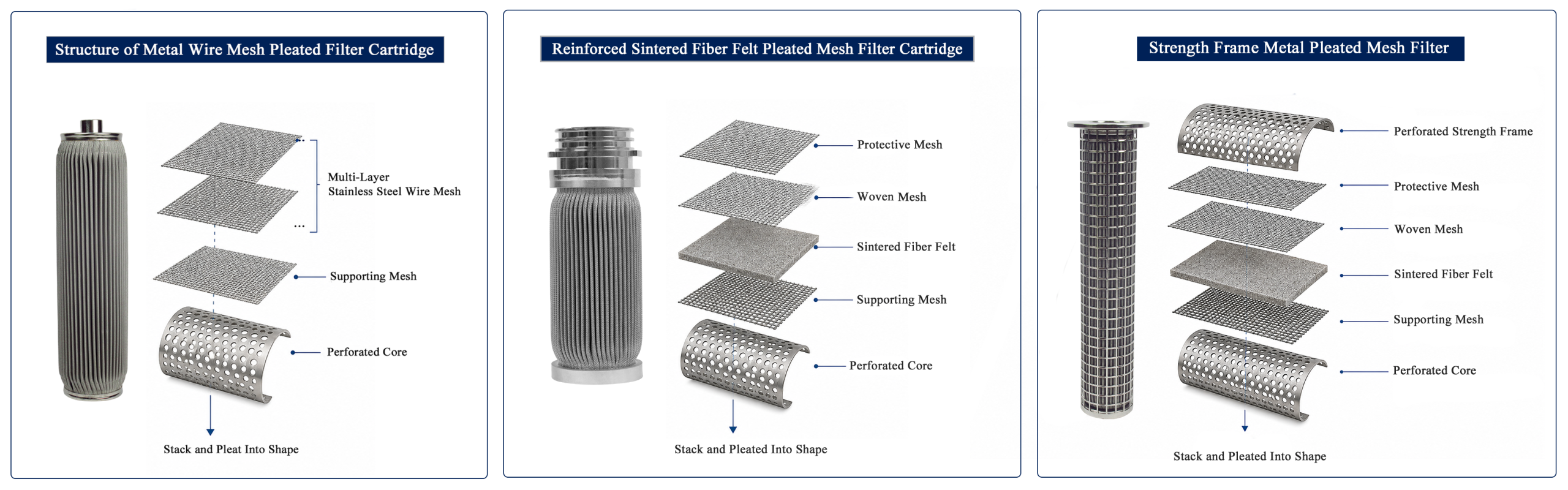

Huahang Filter supply stainless steel metal woven mesh filters of different filter media structure. The filter is generally made of stainless steel woven mesh, sintered fiber felt, and perforated plate. However, different filtration performance can be achieved by arranging and combining these materials in various ways. Each configuration possesses distinct characteristics and is suitable for different operating conditions.
Woven Mesh Structure
Features :
• Stable filtration accuracy & Accurate particle retention
• Low pressure drop suitable for continuous production lines
• Strong mechanical strength for high differential pressure
• Excellent backwashability due to long service life
Main Limitations
• Lower dirt-holding capacity than sintered fiber felt
• The surface filtration layer may clog faster
• Less suitable for extremely high-viscosity melts
Industrial Applications
◊ Polymer Extrusion Industry
— Plastic extrusion, Masterbatch production, and Rubber processing
◊ Hydraulic & Lubrication Systems
— Hydraulic oil filtration, Lubricating oil purification, and Turbine oil filtration
◊ Chemical Industry
— Resin filtration, Solvent filtration, Catalyst recovery
◊ Food & Beverage Industry
— Edible oil filtration, Beverage processing, High-temperature steam filtration
◊ Pharmaceutical Industry
— High-purity liquid filtration, CIP/SIP systems
Sintered Felt Structure
Features :
• Extremely high dirt holding capacity with deep filtration
• High porosity that is suitable for high viscosity liquids
• Superior mechanical strength with a stable pleated layer
• Excellent high-temperature resistance for polymer melt
Main Limitations
• The precision consistency is lower than that of woven mesh
• The initial pressure drop may be slightly higher
• More difficult to fully backwash
Industrial Applications
◊ Chemical Fiber Industry
— Polyester spinning, Nylon production, and Melt spinning systems
◊ Polymer & Plastic Industry
— PET extrusion, BOPP production, Plastic granulation, and Masterbatch systems
◊ Resin & Adhesive Industry
— High viscosity resin, Glue filtration, Coating systems
◊ Petrochemical Industry
— Heavy oil filtration, Catalyst filtration, and High-temperature liquid filtration
◊ Hot Gas Filtration
— Industrial furnaces, Exhaust gas, Combustion filtration

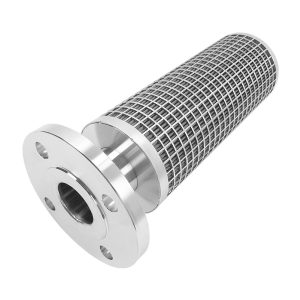

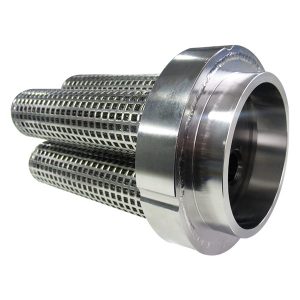

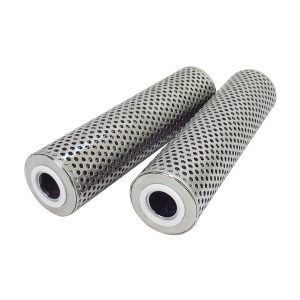

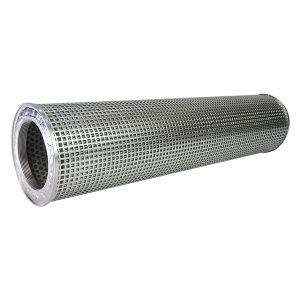

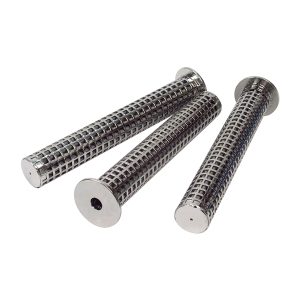

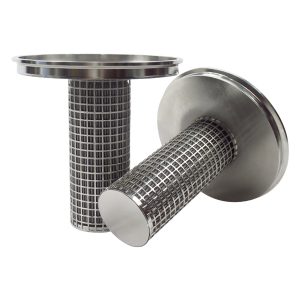

Reinforced Structure
Features :
• Withstand impact by extremely strong pressure resistance
• Prevent the pleated meshes from collapsing
• More suitable for extra-long filter cartridges and high flow app
• Increase backflush tolerance and extend service life
Main Limitations
• The manufacturing cost will be much higher
• Heavier weight and a large installation space requirement
• May not be necessary for mild working conditions
Industrial Applications
◊ Chemical Fiber Spinning Industry
— Before spinning unit, Melt delivery system, Metering pump before and after
◊ Plastic Film Industry
— BOPET/BOPP/CPP/PE Film
◊ Plastic extrusion industry
— PP/PE/ABS/EVA/TPU
◊ Resin and Adhesive Industry
— Filter medium with high viscosity, easy to gel, and a large pressure difference
◊ Petrochemical Industry
— Heavy oil filtration, High-temperature oil filtration, and Catalyst recovery
