Strengthen Structure Sintered Mesh Filter Cartridge
Stainless steel sintered filter elements are usually made of standard five-layers sintered metal mesh. Huahang metal mesh sintered filter can be upgraded to a strengthen support frame filter cartridge in order to be used in high-pressure environments.

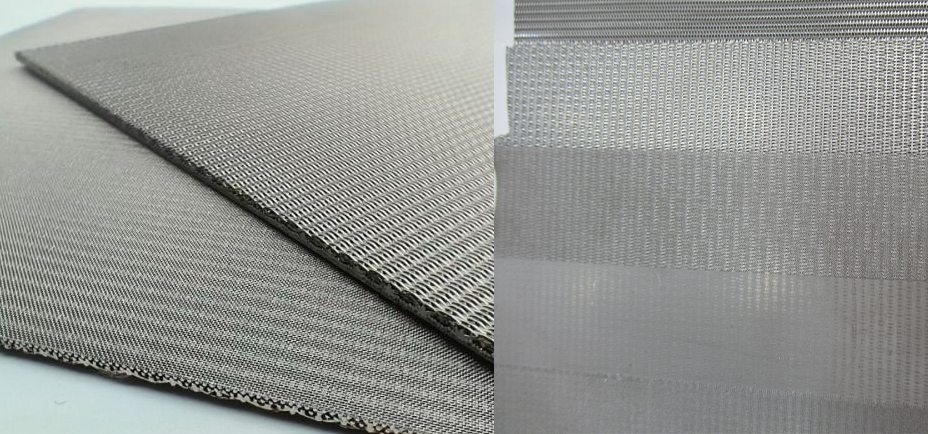

Five-layers stainless steel sintered mesh offers stable porosity and uniform micron rate, and it can be expanded into multiple layers. In addition to adjustable filtration accuracy, we can also enhance the sintering filter element’s compressive strength by adding support and reinforcement layers. The reinforcing structures typically include perforated plates, square-hole plates, and reinforcing ribs; both the internal and external surfaces of the filter element can be reinforced.
The reinforced sintered mesh filter elements possesses a high differential pressure tolerance and resistance to deformation, resulting in enhanced structural stability. They are specifically designed for operating conditions involving high pressure, high temperature, high flow rate, heavy loads, and susceptibility to impact, and can be widely used in several industries.

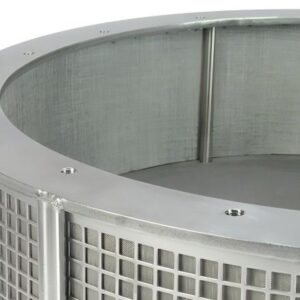

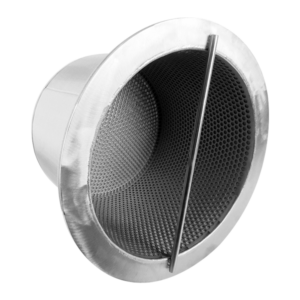

Details of Reinforced Structure Sintering Filter

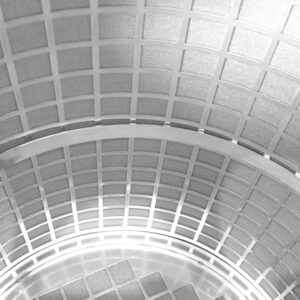

Internal
Structure

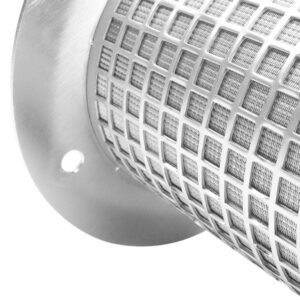

External

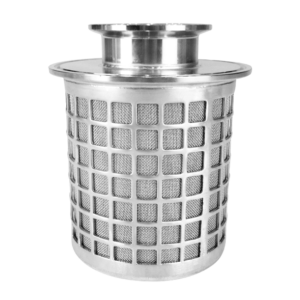

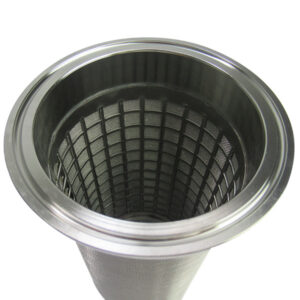

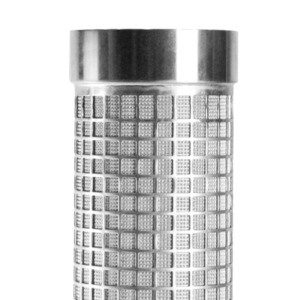

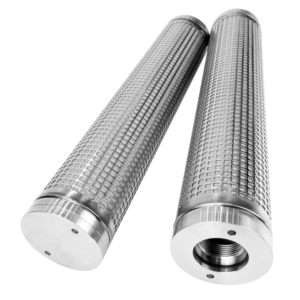

———— Square-Hole Plate ————

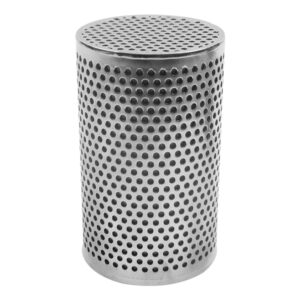

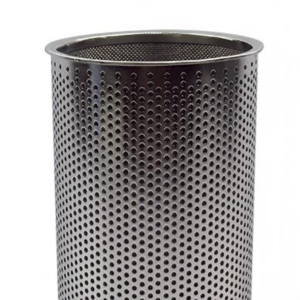

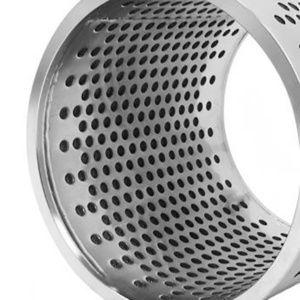

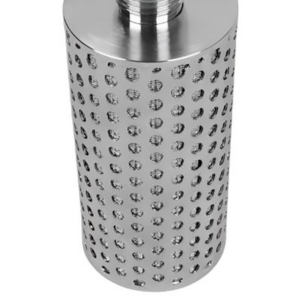

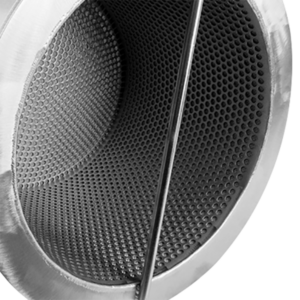

———— Perforated Plate ————

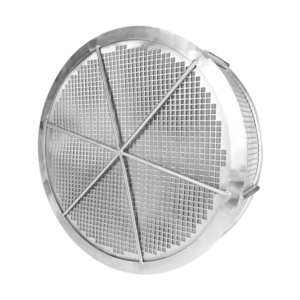

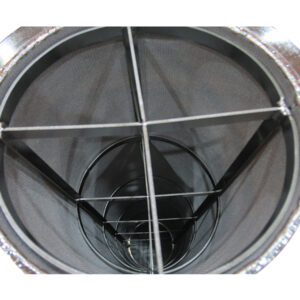

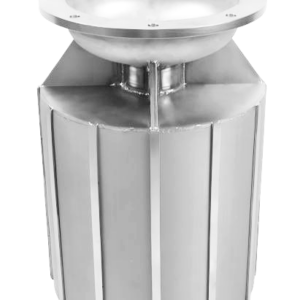

———— Reinforcing Ribs ————
Customized Sintered Filter Avaliable
Huahang sintered filter manufacturer typically support:
- Custom size & shape
- Different micron ratings
- Stainless steel and special alloys
- Surface treatment (polishing, coating)
- Connection types (thread, flange, handle, lifting bar)
Typical Applications in Industrial Filtration
Huahang reinforced sintered metal mesh filter cartridges with perforated plate or rib support are ideal for high-pressure, high-temperature, high flow rate, and high differential pressure filtration applications, where normal filter elements may deform or fail.
High Pressure Polymer Melt Filtration
In plastic extrusion and fiber spinning lines, the perforated plate support structure prevents deformation under high pressure and high viscosity conditions, ensuring stable filtration performance.
- High melt pressure (typically 10–30 MPa)
- High temperature (200–300°C)
- Continuous production; downtime is not permitted.
Catalyst Recovery in High Flow Reactors
In petrochemical reactors with high flow rates and pressure fluctuations, the strengthened structure resists fluid impact and pressure surges, maintaining structural integrity during long-term operation.
- High flow velocity and strong impact
- Frequent pressure differential fluctuations
- Long continuous operating cycles
High Temperature and High Velocity Gas Filtration
In industrial furnaces or chemical processing units, reinforced sintered mesh filters are used for high temperature gas filtration. The rigid structure withstands thermal stress and high-velocity gas impact, preventing deformation or rupture.
- High-temperature gas (300–600°C or higher)
- High-velocity impact
- High dust loading
Steam and Condensate Filtration in High Pressure Pipelines
In high-pressure steam systems, reinforced filter elements are used to handle pressure shocks and thermal cycling. The support structure ensures long service life even under harsh steam conditions.
- High-Pressure Steam
- Frequent Thermal Expansion and Contraction
- Pronounced Pipeline Impact
Backwash / Reverse Flow Filtration Systems
These filter elements are ideal for backwashing filtration systems, where the flow direction frequently reverses. The reinforced support (perforated plate or ribs) prevents damage caused by reverse pressure and repeated cleaning cycles.
- Frequent backwashing
- Alternating forward and reverse pressure
- Requires repeated, long-term use
Filtration in High Differential Pressure Systems
Reinforced sintered mesh filters are specially designed for applications with high differential pressure (ΔP). The perforated plate support prevents collapse or pleat deformation under extreme pressure differences.
- High differential pressure (far exceeding that of standard filter elements)
- Requires high and stable filtration precision
- Must not undergo structural collapse

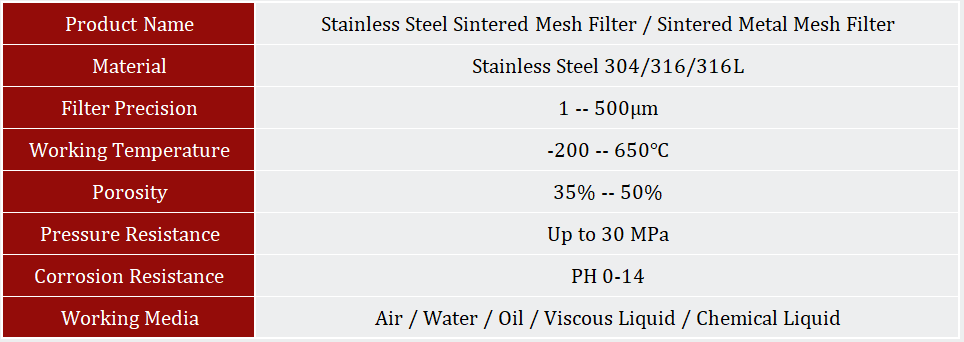

Huahang Sintered Metal Mesh Filter Parameter
Compared with conventional wire mesh filters, sintered mesh filters feature higher structural strength, superior pressure resistance, stable permeability, and consistent filtration accuracy, even under high-pressure or high-flow conditions. Specifications within the above range can be customized according to user requirements. Contact Huahang and get a solution.

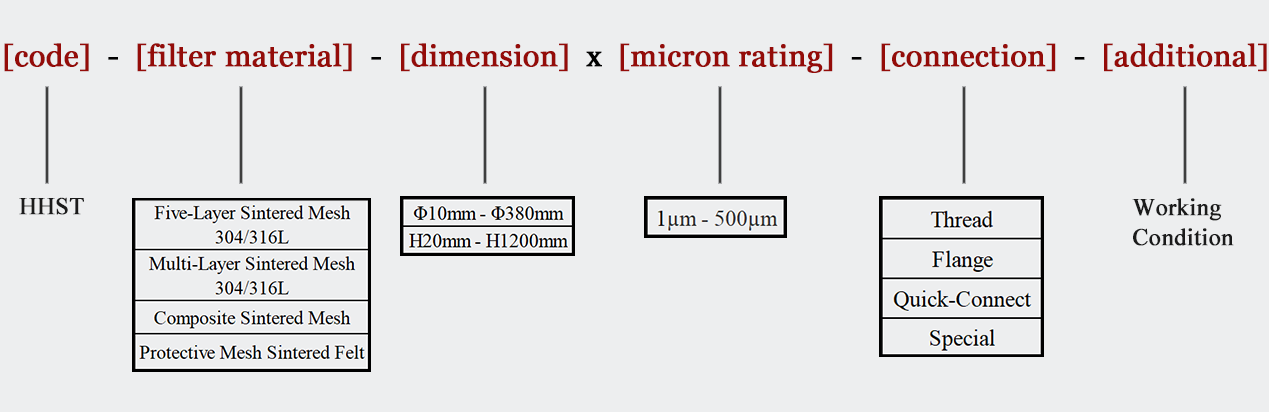

Sintered wire mesh filter elements support full customization

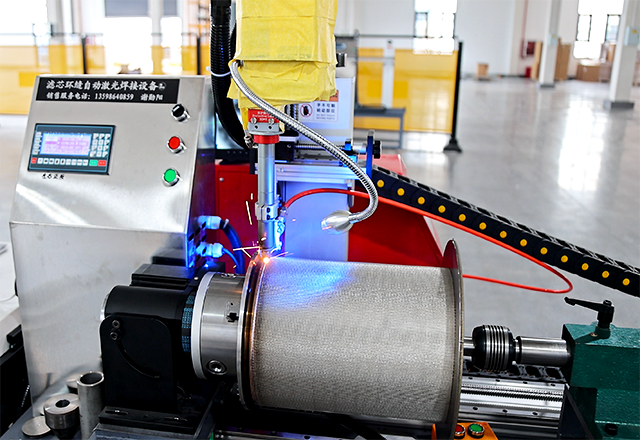

The structure of stainless steel sinter filter cartridges mainly consists filter layer and connection, usually jointed these two parts by metal welding technology to form a complete filter element. Both of the filter layer and connection could be selected according to customer's needs.

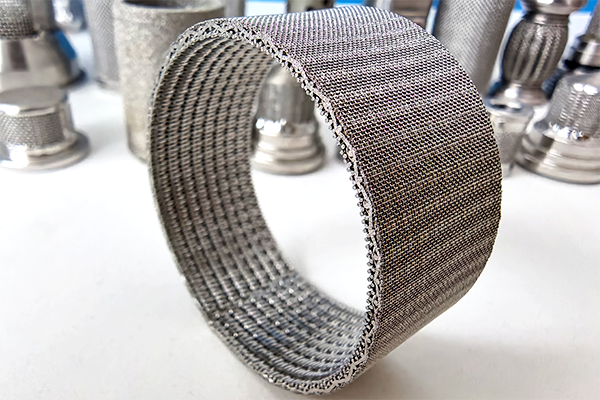

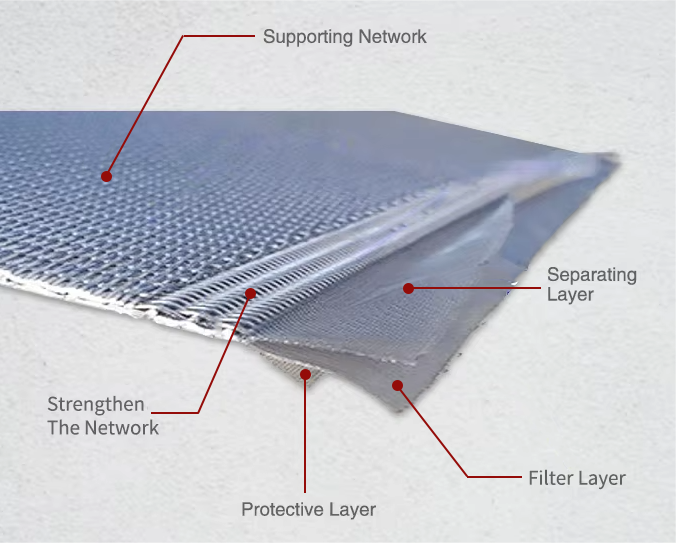

The most widely used sintered mesh is the standard five-layer sintered mesh, a new type of filter material made by vacuum sintering five layers of stainless steel wire mesh stacked in sequence. It consists of four parts: a protective layer, a filter layer, a diffusion layer, and a support layer. By rationally matching and designing the number of layers, pore size, permeability, and strength characteristics, the filter material can be adapted to different working environments.

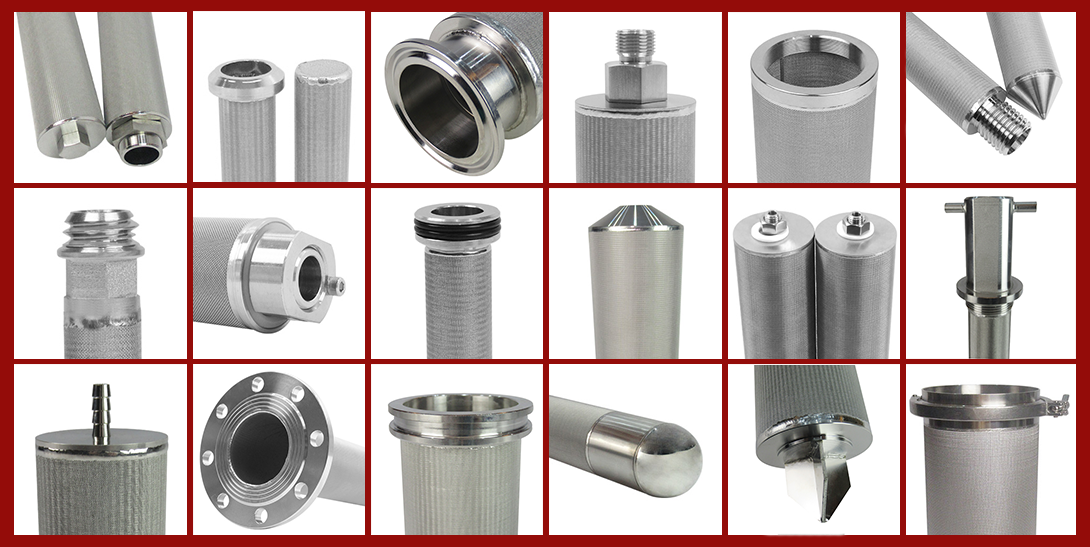

Huahang sintered filter can supply different kinds of end connections to meet different install method, such as quick-connected, male and female thread, flange, pagoda, and so on. We can also custom special type connections according to customer’s using condition.
Huahang - Leading Manufacturer of Sintered Mesh Filter Cartridges
Huahang Filter is a professional sintered metal filter manufacturer with over 20 years of industrial production experience. We specialize in the development and manufacturing of high-performance sintered metal filtration products for demanding industrial applications. With advanced production technology and mature manufacturing processes, we have built a complete production system for various sintering filters, all Huahang sintered filter elements are manufactured using high-quality raw materials and strict quality control standards.
Equipped with modern production facilities and supported by a professional engineering team, Huahang has strong capabilities in OEM customized sintered filter production and industrial filtration solutions. We can design and manufacture filters according to customer requirements, including size, filtration rating, material, and structure.
As a direct factory and source manufacturer, Huahang also offers competitive pricing and reliable supply capacity for global customers. We are committed to providing high-quality sintered filter elements, porous metal filters, and customized filtration solutions to meet diverse industrial filtration needs.
Frequently Asked Questions
Find answers to common questions about our sintered filter products, customization options, technical specifications, and ordering process.
Description of sintering process.
