Sintered Mesh Filter Cartridge Meaning
Stainless steel sintered mesh filter cartridge is a kind of industrial metal material filter, widely used in industries that require stable high-temperature and high-pressure filtration performance. Typical applications include hydraulic and lubrication oil filtration in mechanical systems, polymer melt filtration in chemical fiber and plastics industries, pharmaceutical material purification, and gas distribution.
Huahang stainless steel sintered mesh filter element is manufactured from multilayer woven stainless steel sintered wire mesh through lamination, high-temperature vacuum sintering, and precision processing. The standard structure is typically composed of five layers of stainless steel mesh, including a protective layer, filtration control layer, diffusion layer, and supporting layers. After sintering, these layers are metallurgically bonded into a single rigid structure with a uniform and stable pore distribution, providing high-precision and reliable filtration performance for demanding industrial applications.
The advanced multilayer design usually adds perforated plate layer and formed a strengthen frame metal sintered filter, provides excellent mechanical strength, pressure resistance, and dimensional stability, allowing the filter to maintain consistent filtration performance even under demanding operating conditions. The stainless steel sinter filter element is commonly produced using SUS304, SUS316, or SUS316L stainless steel, offering excellent resistance to corrosion, high temperatures, and mechanical stress. It operates reliably within a wide temperature range of –200°C to 650°C and provides filtration ratings from 1 to 500 microns.
Huahang Sintered Metal Mesh Filter Parameter
Compared with conventional wire mesh filters, sintered mesh filters feature higher structural strength, superior pressure resistance, stable permeability, and consistent filtration accuracy, even under high-pressure or high-flow conditions. Specifications within the above range can be customized according to user requirements. Contact Huahang and get a solution.
Sintered wire mesh filter elements support full customization
The structure of stainless steel sinter filter cartridges mainly consists filter layer and connection, usually jointed these two parts by metal welding technology to form a complete filter element. Both of the filter layer and connection could be selected according to customer's needs.
The most widely used sintered mesh is the standard five-layer sintered mesh, a new type of filter material made by vacuum sintering five layers of stainless steel wire mesh stacked in sequence. It consists of four parts: a protective layer, a filter layer, a diffusion layer, and a support layer. By rationally matching and designing the number of layers, pore size, permeability, and strength characteristics, the filter material can be adapted to different working environments.
Huahang sintered filter can supply different kinds of end connections to meet different install method, such as quick-connected, male and female thread, flange, pagoda, and so on. We can also custom special type connections according to customer’s using condition.

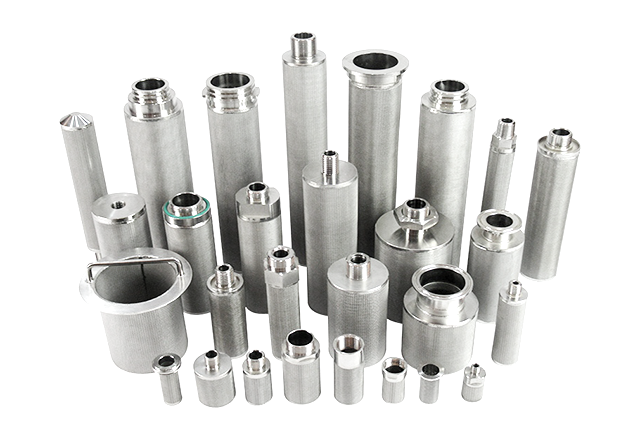

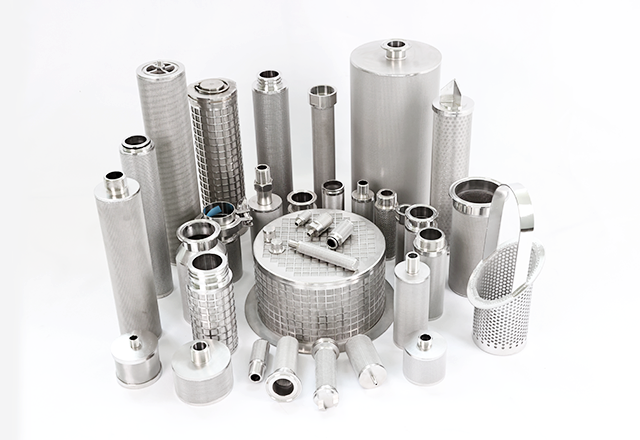

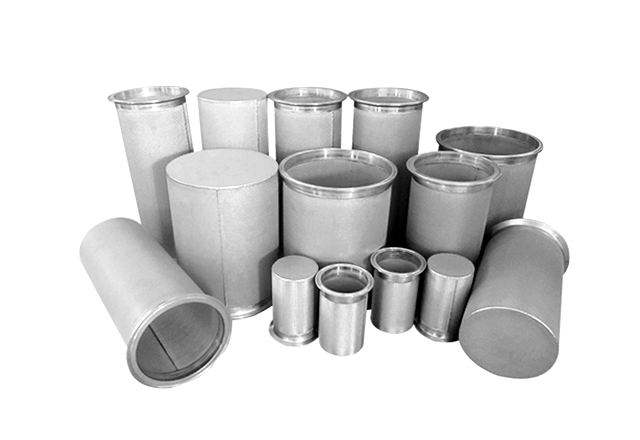

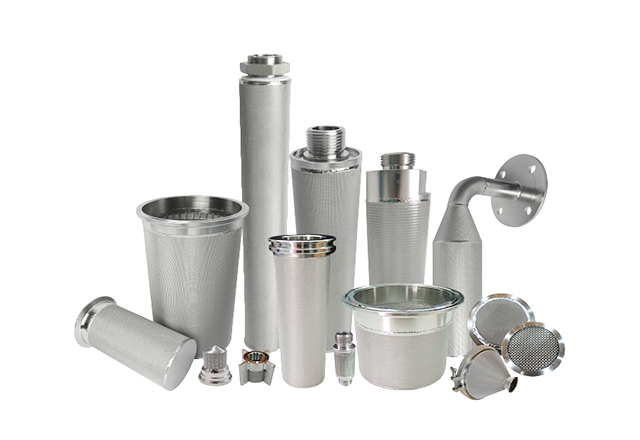

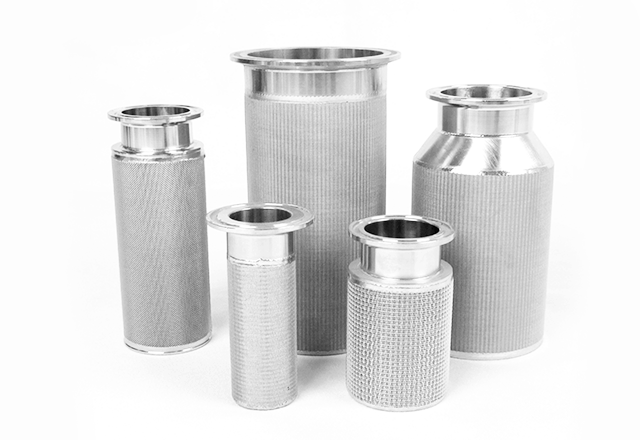

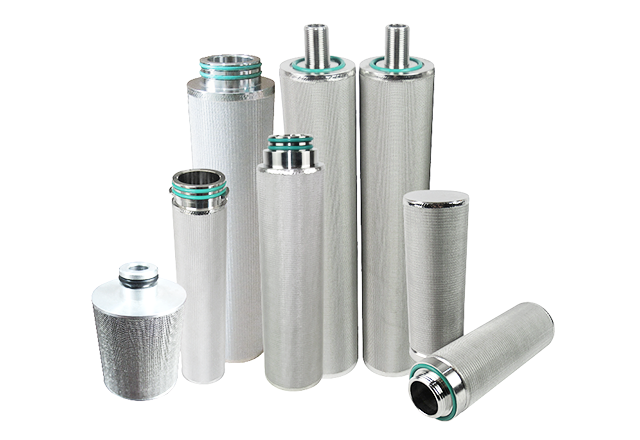

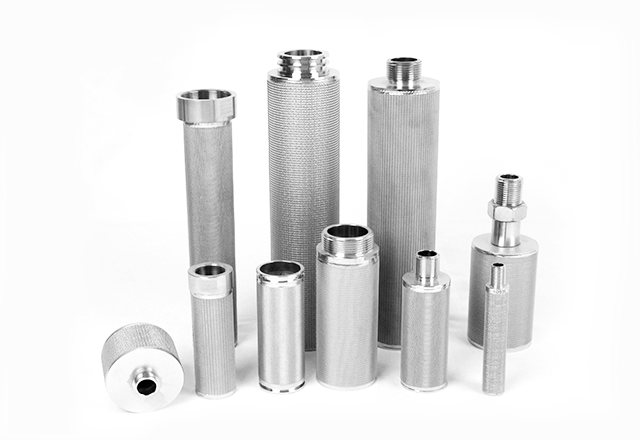

These are some of different types of stainless steel sintered mesh filters Huahang has made before. We have professional production team and advanced production equipment to make sintered metal filters for various shapes, dimensions, filter layers and connections.
Customization Capabilities
Huahang sintered filter manufacturer typically support:
- Custom size & shape
- Different micron ratings
- Stainless steel and special alloys
- Surface treatment (polishing, coating)
- Connection types (thread, flange, handle, lifting bar)
Sintered metal filter has outstanding advantages and wide applications
Because the stainless steel sintered mesh has both uniform and stable filtration accuracy and high strength and rigidity, and the filtration mechanism is surface filtration with smooth mesh channels, it has excellent backwashing and regeneration performance and can be used repeatedly for a long time. It is especially suitable for continuous and automated operation processes, which is unmatched by any other filter material. So the sintering filter element which made of sintered stainless steel sheet has excellent filtration performance, and can be widely used in various industries.
Features of Sintered Filter Cartridges
1. High strength and rigidity: Possesses high mechanical strength and compressive strength, excellent processing, welding, and assembly performance, and is easy to install.
2. Uniform and stable filtration accuracy: Achieves uniform filtration performance across all filtration calibers, with no change in mesh size during use.
3. Wide range of applications: High temperature and corrosion resistant, suitable for filtration in temperature environments from -20°C to 65°C, as well as acidic and alkaline environments.
4. Excellent cleaning performance: Excellent countercurrent cleaning effect, reusable, and long service life (can be cleaned using countercurrent water, filtrate, ultrasonic, melting, baking, etc.).
5. High, uniform, and stable filtration accuracy: Achieves uniform filtration performance across particle sizes from 1 to 500 μm, with no change in mesh size during use.
Applications
1. High temperature gas filtration: Remove dust, solid particles, and process contaminants from hot gases in furnaces, reactors, vacuum feeder and chemical processing equipment.
2. Steam filtration: Remove rust particles, scale, and pipeline debris from industrial steam.
3. Lubricating oil filtration: Remove metal particles, dust, and solid contaminants from oils.
4. Petrochemical filtration: Effectively remove solid catalyst particles, reaction residues, and mechanical impurities from liquids or gases.
5. Polymer melt filtration: Remove gel particles, unmelted polymer, and solid contaminants from high-temperature molten polymers.
6. Industrial water filtration: Effectively remove suspended solids, rust particles, sediments, and other impurities from process water.
Huahang - Leading Manufacturer of Sintered Mesh Filter Cartridges
Huahang Filter is a professional sintered metal filter manufacturer with over 20 years of industrial production experience. We specialize in the development and manufacturing of high-performance sintered metal filtration products for demanding industrial applications. With advanced production technology and mature manufacturing processes, we have built a complete production system for various sintering filters, all Huahang sintered filter elements are manufactured using high-quality raw materials and strict quality control standards.
Equipped with modern production facilities and supported by a professional engineering team, Huahang has strong capabilities in OEM customized sintered filter production and industrial filtration solutions. We can design and manufacture filters according to customer requirements, including size, filtration rating, material, and structure.
As a direct factory and source manufacturer, Huahang also offers competitive pricing and reliable supply capacity for global customers. We are committed to providing high-quality sintered filter elements, porous metal filters, and customized filtration solutions to meet diverse industrial filtration needs.
Frequently Asked Questions
Find answers to common questions about our sintered filter products, customization options, technical specifications, and ordering process.
Description of sintering process.
