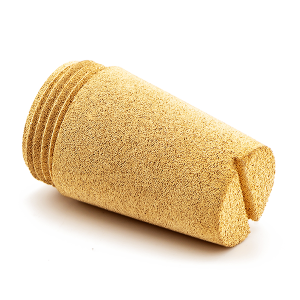

Pneumatic Air Mufflers

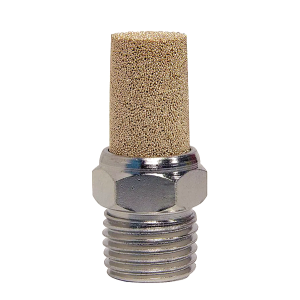

Sintered metal powder silencers, also known as pneumatic mufflers and air muffler filter. It is an economical noise suppression device used in industrial equipment, pneumatic systems, and other applications, which is manufactured using powder metallurgy technology. The primary function of a pneumatic muffler silencer is to reduce noise generated by gas emissions and to diffuse the airflow into the external environment. In high-noise industries, it can reduce noise levels by approximately 30 to 35 dB, resulting in a near-zero noise output.

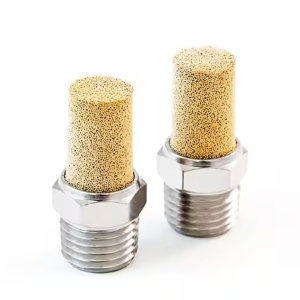

Additionally, the Huahang air muffler silencer incorporates filtration capabilities and exhibits excellent corrosion resistance, high-temperature stability, and high-pressure tolerance. Its design is optimized for installation in confined spaces and facilitates easy maintenance. These sintered air mufflers are widely used in compressed air systems, valves, cylinders, and pneumatic tools, where exhaust air can generate high noise levels and carry oil mist or particles.
Technical Specifications
Parameter
Material
Filtration Rating
Noise Reduction Level
Temperature Resistance
Pressure Resistance
Connection Types
Range
Copper/Brass/Bronze/Stainless Steel
0.5 — 100 μm
15 — 40 dB
600°C
2 MPa / 300 PSI
NPT/BSP/Metric/Custom
Working Principle
The air exhaust mufflers can convert acoustic energy into heat and reduce noise by diffusing high-velocity exhaust air through a porous metal structure. The metal porous structure can break up airflow turbulence, reduce the velocity, and absorb the sound energy.
These belong to the porous diffusion and sound attenuation principle. Mainly operate process of the pneumatic air muffler includes:
- The air passes through the interconnected pores of the metal sintered powder material.
- The oil mist and solid particles are partially captured in the pore.
- The compressed air is released through the pneumatic air silencer.
Materials of Sintered Air Muffler
Huahang air muffler silencer can be manufactured from a range of materials to meet different performance requirements, including corrosion resistance, temperature tolerance, mechanical strength, and cost efficiency.
Standard Materials
- Sintered Bronze — Cu-Sn Alloy. The most widely used material due to its excellent balance between filtration efficiency and airflow capacity, and its competitive cost.

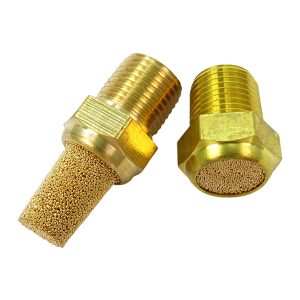

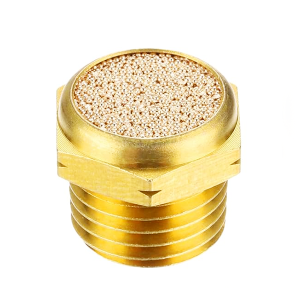

- Sintered Brass — Cu-Zn Alloy. It has a stable structure, better machinability compared to bronze, and higher mechanical strength than copper.

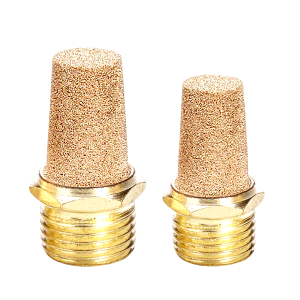

- Sintered Copper — Pure copper has high thermal conductivity, excellent ductility, and formability. But lower mechanical strength compared to bronze and brass.
Advanced Materials

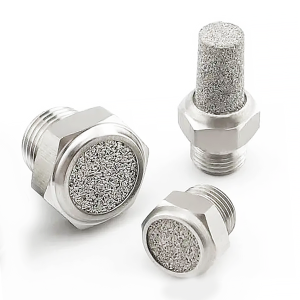

- Stainless Steel 304 / 316 / 316L — Excellent corrosion resistance, high-temp resistance, and long service life. Suitable for harsh or humid conditions.
- Nickel-Based Alloys — Excellent chemical stability in aggressive environments, and strong resistance to acids, alkalis, and corrosive gases.
- Engineering Plastics (PE / PTFE) — Lightweight and low cost with excellent chemical resistance. Suitable for lightweight equipment and cost-sensitive applications.
Advantages and Applications of Huahang Pneumatic Mufflers
Huahang manufacturer has over 20 years experience in making sintered metal filters. We can produce various types sintered air mufflers with high quality and widely used by professinal technical team and strong production team.
Key Features
- Huahang sintered air silencers are manufactured by precise technology, and have excellent noise reduction performance. They have a dual function include silencing and filtration.
- The air muffler filter has an all-metal construction, making it have great mechanical strength and not easy to deform.
- The pneumatic air muffler has great high-temperature, high-pressure, and corrosion resistance due to its metal powder raw material.
- Huahang air sparger filter has a compact structure and is easy to install. It also has a maintenance-free and washable design.
Pneumatic Systems — Pneumatic exhaust silencer for air cylinders, air muffler for solenoid valves, and compressor exhaust silencer for air compressors.
Industrial Equipment — Pneumatic air silencers are widely used in automatic systems, packaging machinery, and textile machinery to reduce the operating noise in the workshop.
Other Industries — Sintered air mufflers can be applied in chemical processing, pharmaceutical equipment, and electronics manufacturing due to their corrosion resistance.
OEM/ODM Customized Sintered Air Muffler Filter Solutions
Huahang offers fully customizable solutions based on your application:
- Custom thread types and sizes
- Adjustable porosity and filtration rating
- Special shapes and dimensions
- High-temperature or corrosion-resistant materials
- OEM branding and packaging
Huahang Porous Metal Sintered Filter Elements Parameter
Porous metal sintered filter elements support full customization
Huahang metal powder sintered filter can be customized in various connections, like male thread, female thread, flange mounted, welded connection, and other special designed connections. Sparger sintered filter can also be manufactured in various shapes, including tubular, conical, disc, flat-bottomed, and round-bottomed forms.
Huahang metal porous powder sintered filters support a wide range of connection standards:
- Threaded connections: NPT, BSPP (G), BSPT (R), Metric threads
- Common sizes: 1/4″, 1/2″, 3/4″, 1″, G1/2, G1
- Flange standards: ANSI B16.5, DIN EN 1092-1, JIS
- Pressure ratings: Class 150 / PN16 / 10K and above
- Structural options: male, female, flange-mounted, welded

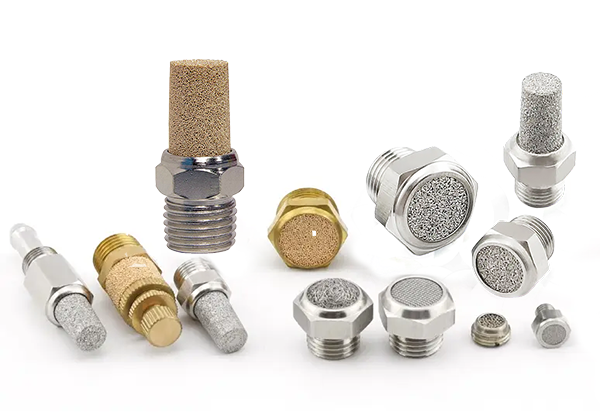

Here are some of the powder sintered filters Huahang has made before. We supply fully custom solutions of metal porous sintered filter, from material selection to pore size and structure — Huahang will engineer for your application.
Huahang -- Your Reliable Powder Sintered Filter Manufacturer
Huahang Sintered Filter is a professional manufacturer of metal powder sintered filter elements with over 20 years of industrial experience. We specialize in producing high-performance porous metal filters for demanding applications such as high temperature, high pressure, and corrosive environments. Our products are widely used in industries including chemical processing, petrochemical, pharmaceutical, gas filtration, and environmental protection.

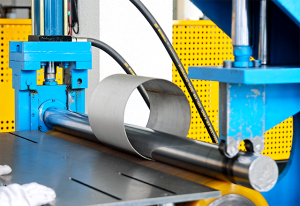

With advanced powder metallurgy technology and mature sintering processes, Huahang has established a complete production system covering raw material selection, screening, forming, vacuum sintering, machining, and inspection. All sintered porous filter elements are made from high-quality metal powder materials, ensuring uniform pore structure, reliable filtration accuracy, and long service life under critical operating conditions.
Equipped with modern manufacturing facilities and supported by an experienced engineering team, Huahang offers strong OEM and ODM customization capabilities. We can produce filters based on drawings, samples, or specific requirements, including size, micron rating, porosity, and connection types. As a direct factory, we provide competitive pricing, stable supply capacity, and dependable quality. We strive to be a long-term partner for industrial filtration solutions worldwide.
Frequently Asked Questions
Find answers to common questions about our sintered filter products, customization options, technical specifications, and ordering process.
Can sintered silencers be cleaned and reused?
How to choose the right silencer?
Are stainless steel silencers better than bronze?
What is the difference between a silencer and a muffler?
